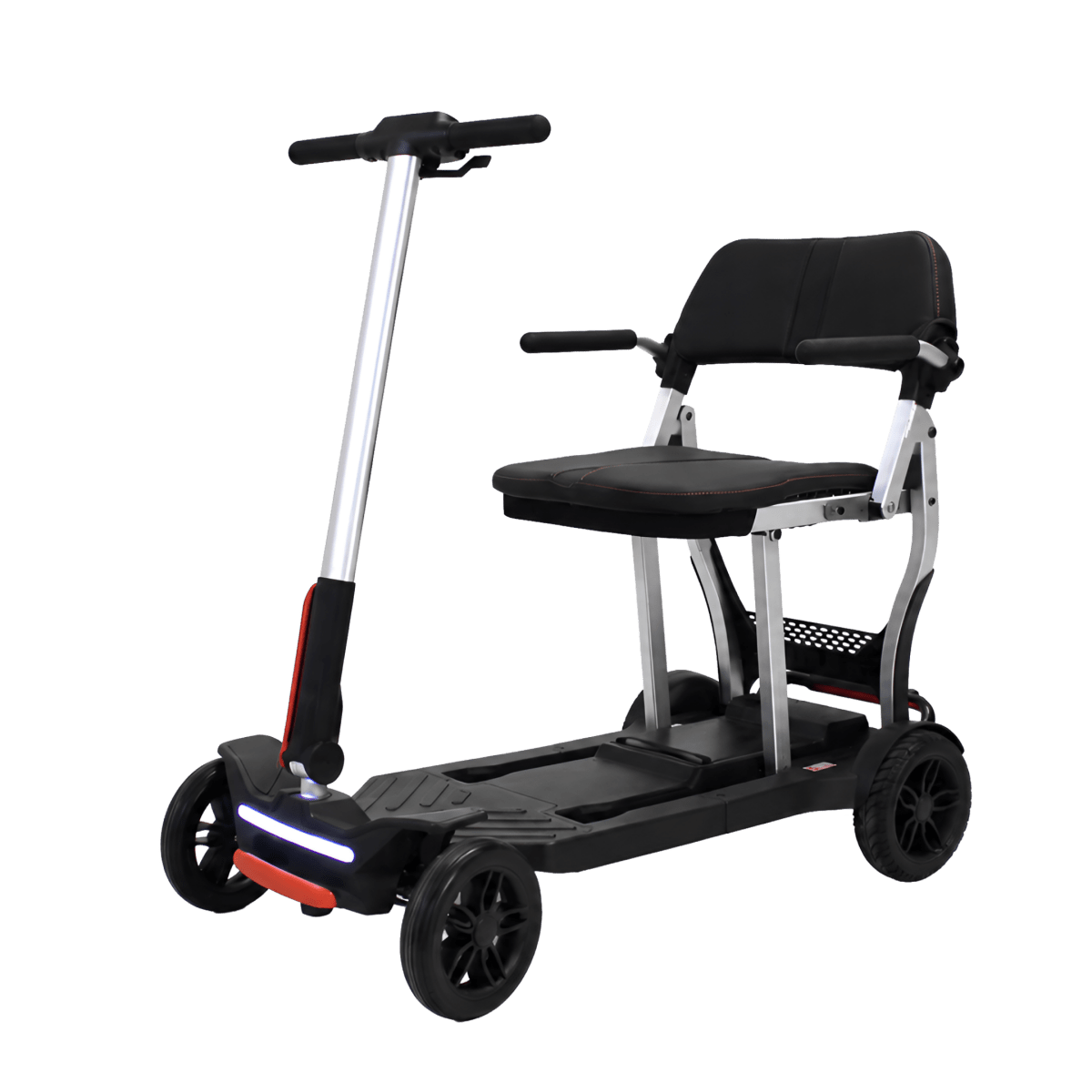

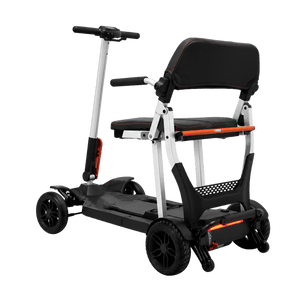

MOVO Pilot Folding 4-Wheel Mobility Scooter

Lightweight 4-Wheel Folding Travel Scooter with Removable Lithium-Ion Battery | MOVO
Model: PILOT (M2089) | Weight Capacity: 275 lb (125 kg)

🔷 Product Overview

The MOVO Pilot Folding Mobility Scooter is a portable 4-wheel electric scooter designed to provide convenient transportation for seniors and individuals with disabilities or limited mobility. Its manually folding frame collapses into a low-profile shape that can be rolled or lifted for transport and storage.

Weighing 44 lb (20.2 kg) with the battery, the Pilot combines portability with a 275 lb weight capacity, a maximum speed of 6 km/h, and a travel range of up to 15 km per charge. The removable 10 Ah lithium-ion battery can be charged either on or off the scooter.

For comfortable operation, the Pilot features a height- and angle-adjustable tiller, ambidextrous wigwag throttle, five speed settings, backlit display, horn and front light. Its four-wheel configuration and rear anti-tip wheels provide a stable platform for travel on sidewalks, pathways and other pedestrian surfaces.

🔷 Key Features & Benefits

• Manual folding design collapses flat without tools
• Compact for car trunk, closet and indoor storage
• Lightweight at 44 lb (20.2 kg) with battery
• 40 lb (18.3 kg) without battery
• Maximum rider capacity of 275 lb (125 kg)
• Maximum speed of 6 km/h
• Travel range of up to 15 km per charge
• Four-wheel design with rear anti-tip wheels
• Removable 10 Ah lithium-ion battery
• Battery can be charged on or off the scooter
• Five selectable speed settings
• Height- and angle-adjustable tiller
• Ambidextrous wigwag throttle for forward and reverse
• Self-centring throttle provides controlled deceleration
• Backlit battery and speed display
• Built-in horn
• Front light integrated into the footplate housing
• Folding seat with drop-down backrest
• Fixed armrests
• Reversing warning tone
• Electromagnetic braking system

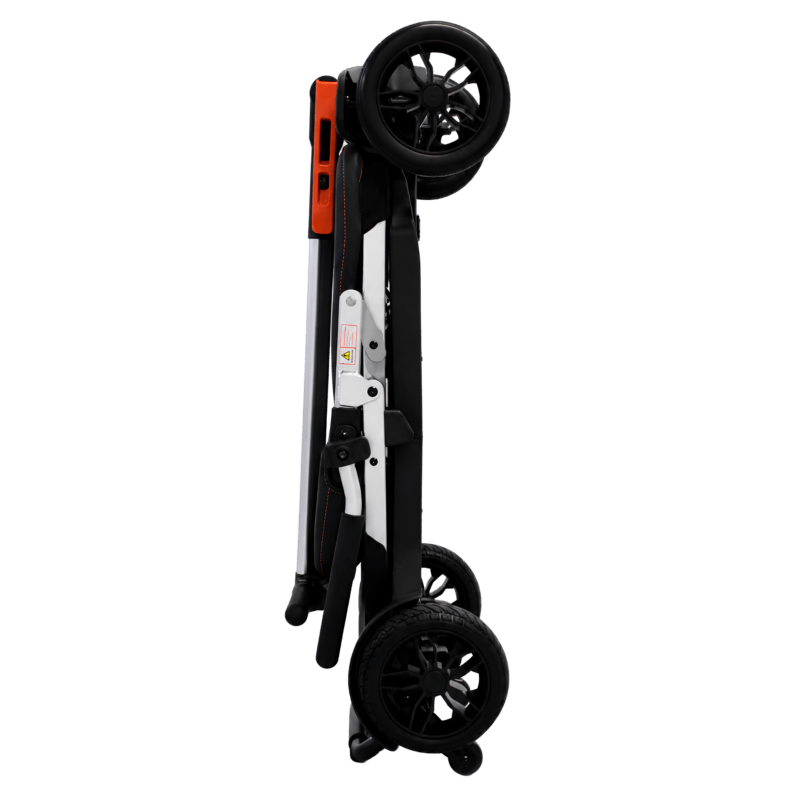

🔷 Compact Manual Folding Design

The Pilot's frame folds manually without tools, creating a flat profile that makes the scooter easier to store or transport.

When folded, it measures approximately:

40" L × 21.6" W × 10.4" H
103 × 55 × 26.4 cm

Its wheeled folded configuration can be rolled when appropriate, while the removable battery reduces the scooter's lifting weight from 44 lb to 40 lb.

🔷 Removable Lithium-Ion Battery

The Pilot uses a removable 25.2 V, 10 Ah lithium-ion battery located beneath the seat.

The battery can be:

• Charged while installed in the scooter
• Removed and charged separately
• Removed for storage between trips

The supplied charger is a 29.4 V, 2 A lithium-ion charger.

For long-term storage, fully charge and remove the battery from the scooter. A stored battery should be recharged at least once every three months.

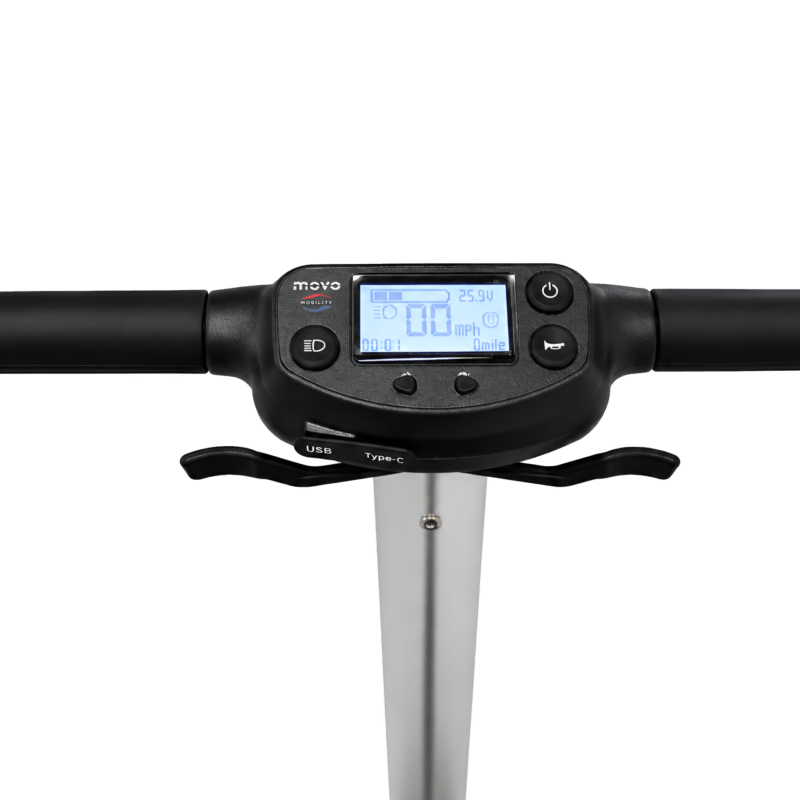

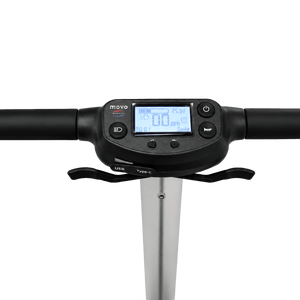

🔷 Easy-to-Use Controls

The control panel provides straightforward access to the scooter's main functions:

• Power switch
• Five-step speed selector
• Horn
• Backlit speed and battery display

The wigwag throttle paddle controls both forward and reverse movement and can be operated from either hand.

When the throttle is released, it automatically returns to centre and the scooter gently decelerates to a stop.

🔷 Electromagnetic Braking

The Pilot does not use a separate hand-operated brake lever during normal driving.

Releasing the throttle allows the scooter to decelerate and stop, while the electromagnetic brake engages when the scooter is powered off.

Do not switch the power off while the scooter is moving. Doing so can engage the brake immediately and cause an abrupt stop.

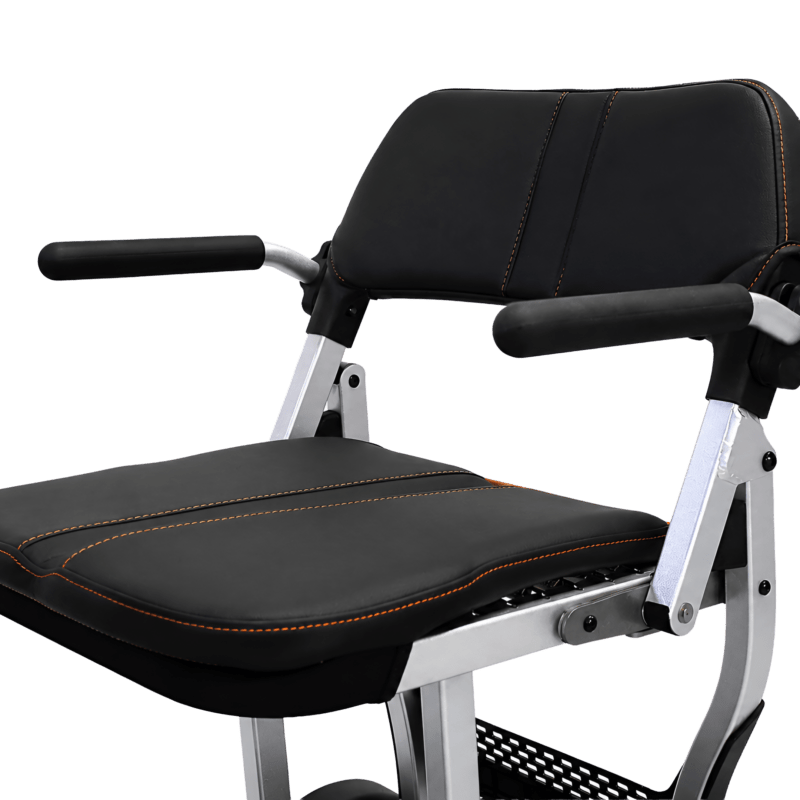

🔷 Adjustable Tiller & Folding Seat

The tiller can be adjusted in two ways:

• Height adjustment at the handle-tube buckle
• Angle adjustment using the tiller lever

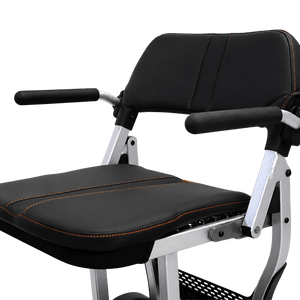

The scooter also features a folding seat with a drop-down backrest and fixed armrests, helping create its compact folded profile for transportation and storage.

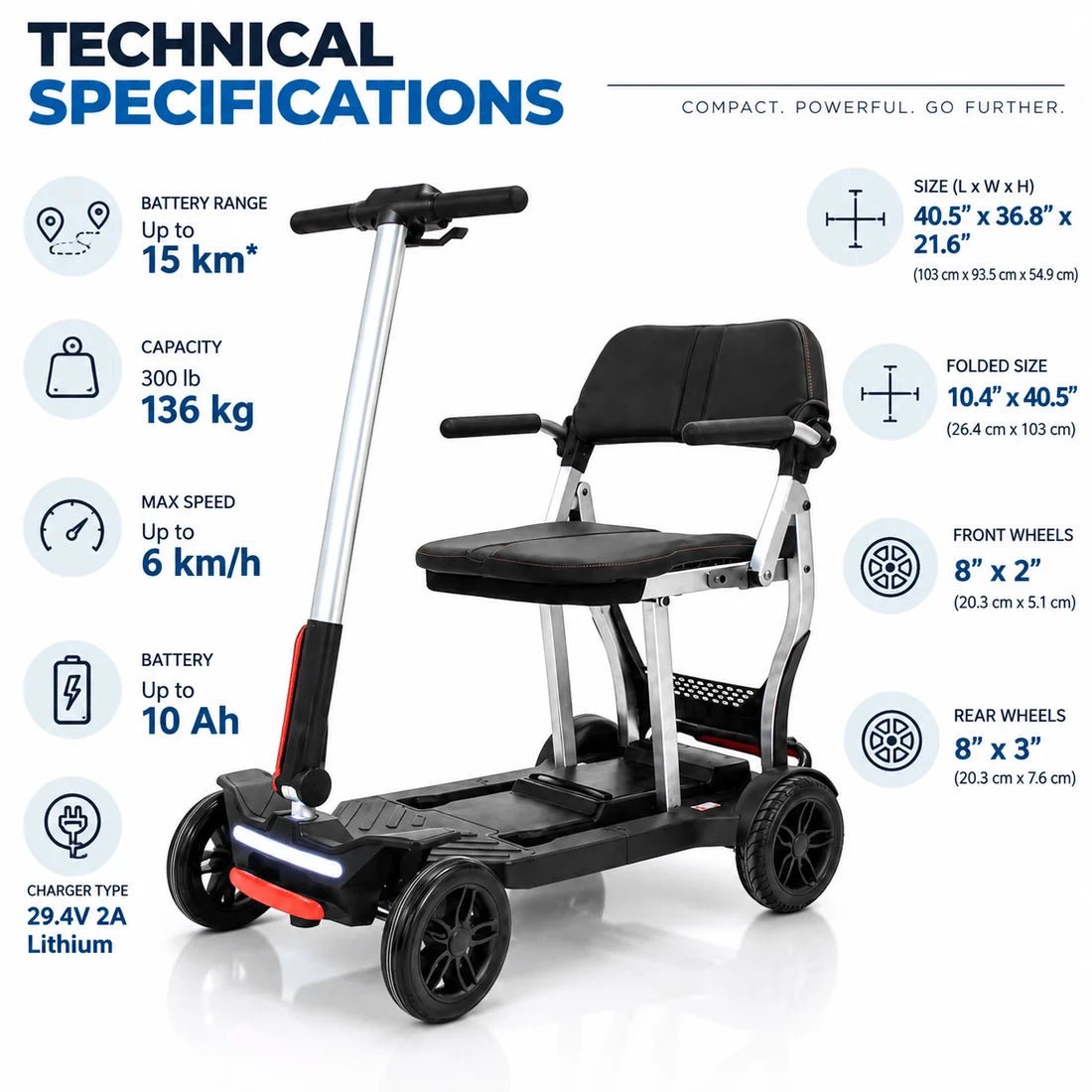

🔷 Specifications

Range varies depending on rider weight, slope, wind, surface conditions and other operating factors.

🔷 Basic Setup & Folding

Before the first ride, inspect all components for shipping damage, install the armrests and fully charge the battery.

To unfold: Place the scooter on a level surface, release the tiller lever, raise the tiller into its riding position and lift the seat backrest until it locks securely.

To fold: Pull the folding lever, lower the backrest onto the seat, release and lower the tiller, and then secure the tiller lever.

Always confirm the frame, tiller and seat are fully locked and secure before riding.

🔷 Ideal For

• Seniors and adults with limited mobility
• Trips requiring a portable mobility scooter
• Sidewalks and pedestrian pathways
• Shopping and everyday outings
• Car trunk transportation
• Homes with limited scooter storage space
• Users who prefer a removable battery for off-scooter charging

🔷 What's Included

• 1 × MOVO Pilot Folding Mobility Scooter – M2089
• 1 × 10 Ah Lithium-Ion Battery
• 1 × 29.4 V, 2 A Charger
• 1 × User Manual – English & French

🔷 Battery & Charger Compatibility

Use the original MOVO charger supplied with the scooter.

Replacement batteries must be lithium-ion batteries of the same specified amp-hour capacity. Do not mix batteries of different capacities or old and new batteries.

Unauthorized modifications and repairs are not permitted. Parts replacement should be performed by the manufacturer's designated maintenance personnel.

🔷 Important Safety Information

The MOVO Pilot has a maximum rider weight of 275 lb (125 kg) and is intended for one rider only. Do not stand while operating the scooter.

The Pilot is designed for sidewalks, pathways and other pedestrian-use surfaces. Do not operate it on roads intended for motor vehicles.

Switch the scooter off before getting on or off, but never use the power switch as a stopping control while moving. Avoid flooded, frozen, slippery or chemically treated surfaces and keep the scooter and control panel dry.

Do not operate the scooter after consuming alcohol, when fatigued, or while taking medication that may impair your ability to operate it safely. Children under 12 should not operate the scooter.

Keep portable radio-frequency communication equipment at least 12 inches (30 cm) from the scooter. Read the complete user manual, including all battery, charging and operating warnings, before first use.

🔷 Care & Storage

• Keep the scooter and charging area clean and dry
• Charge after each use when riding daily
• If used weekly, charge approximately once per week
• For long-term storage, fully charge and remove the battery
• Recharge a stored battery at least once every 3 months
• Store the scooter indoors away from damp environments
• Do not operate with a depleted battery

🔷 Why Buy from Okotoks HC Pharmacy?

When you shop with us, you're choosing more than a product — you're backed by trusted healthcare expertise.

✔ Award-Winning Local Pharmacy
Proudly serving Southern Alberta since 2009 and voted Gold in the Western Wheel Readers' Choice Awards.

✔ Trusted Mobility & Home Healthcare Selection
We carry mobility aids and home healthcare products designed to support safety, independence and everyday living.

✔ Professional Pharmacy Support
Our knowledgeable team can help you understand product features and choose mobility equipment suited to your needs.

✔ Convenient Local Service
Free prescription delivery available throughout Okotoks, High River, DeWinton, and Calgary.

✔ Canadian-Owned Pharmacy
Support a local pharmacy committed to providing quality healthcare products and personalized service.

🔷 Frequently Asked Questions

How much does the MOVO Pilot weigh?
The scooter weighs 44 lb (20.2 kg) with the battery and 40 lb (18.3 kg) without the battery.

How far can the MOVO Pilot travel on one charge?
It has a range of up to 15 km per charge. Actual range varies based on rider weight, terrain, slopes, wind and other operating conditions.

Does the MOVO Pilot fold for transportation?
Yes. The scooter manually folds without tools to approximately 40" × 21.6" × 10.4", making it suitable for storage and transportation.
